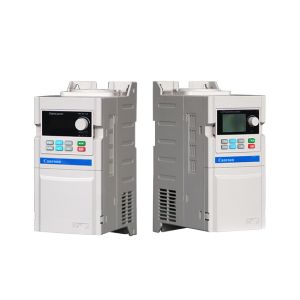

CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
Product Overview: Precision Motor Control for Diverse Applications
The CV900G AC Frequency Inverter (also known as a Variable Frequency Drive or VFD) is a high-performance motor controller designed to provide precise speed and torque control for standard three-phase AC motors. By converting a single-phase power supply into a stable three-phase output, it offers an ideal solution for locations without three-phase power and helps significantly reduce energy consumption and mechanical stress on your equipment.
Key Specifications & Features
Power Range: Wide selection from 0.4 kW to 11 kW (model dependent), catering to various motor sizes.
Input Voltage: Compatible with standard 1-Phase 220V, 230V, or 240V AC supplies, with a flexible ±15% fluctuation tolerance for unstable grid conditions.
Output Voltage: Provides a pure 3-Phase output from 0V to the rated input voltage, enabling smooth motor start-up and speed regulation.
Advanced Control Modes: Four versatile modes offer flexibility for different application needs:
V/F Control: Standard mode for simple speed control.
Advanced V/F Control: Improved performance for better torque output.
V/F Separation Control: Independent adjustment of voltage and frequency.
Sensorless Current Vector Control: Provides high-precision speed and torque control without a feedback encoder.
High-Frequency Operation: Supports a maximum output frequency of up to 3000Hz, suitable for high-speed applications.
Ideal for a Wide Range of Industries
The CV900G is engineered for reliability and performance across numerous sectors, including but not limited to:
Industrial Machinery: Machine Tools, Packaging Machinery, Printing Machinery, Textile Equipment, Wire Drawing Machines, Woodworking Machinery, Stone Processing.
Material Handling: Conveyors, Hoists, Fans, Pumps.
Specialized Manufacturing: Tobacco Processing, Paper Making, Food Production, Chemical Processing, Ceramics, Building Materials, Metallurgy.
Product model of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
CV900G series frequency inverter included advanced technology of flux vector control. High torque output of full frequency,
quick response, perfect load adaptability, high control precision of speed and good reliability, all of which ensure it to meet
high requirement of various field application.
It can easily drive and control motors, and is suitable for industries such as textiles, paper industry, metallurgy, chemicals,
fans and pumps, plastic machinery, and various automated production equipment.
| Input | Rated Voltage, Frequency | 3-phase(4T#sereis)380V;50/60HZ 1-phase(2S#series)220V;50/60HZ |
| Allowed Voltage Range | 3-phase(4T#series)320V~480V 1-phase(2S#series)160V~260V | |
| Output | Voltage | 4T#series; 0~480V 2S#series; 0~260V |
| Frequency | Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ | |
| Overload Capacity | G type: 110% for long-term, 150% for 1 min, 180% for 5s P type: 105% for long-term, 120% for 1 min, 150% for 1s | |
| Control Mode | V/F control, advanced V/F control, V/F separation control, electric current vector control | |
Operation Wiring Diagram of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
Inverter wiring part, divided into the main loop and control loop. The user can lift the cover of the output/input terminals,
then can see the main loop terminal and the control loop terminal. Connect the wiring loop correctly as shown in the
figure below.
Optional Accessories of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
We can provide options such as LCD keyboard,Keyboard base,Keyboard connector,Brake unit,
Input/output filter,Brake resistor,Input and output reactor etc.
Product Application of CV900G 0.4kW-11kW AC Frequency Inverter Support 1 Phase 220V-240V
The product is mainly applied to mining machinery,printing machinery, packaging machinery, tobacco, paper making,
stone machinery, food, chemical, transmission, wire and cable, metallurgy,Drawing machine, textile, machine tools,
wood machinery,ceramic industry, building materials, and much more industries.
Factory workshop
Exhibition
Certificate
We offer robust and customizable packaging solutions to ensure your products arrive safely:
Secure Outer Case: Packed in sturdy plywood or wooden cases for maximum protection during transit.
Surface Protection: Adhesive wrapping applied to prevent scratches and surface damage.
Unit Integrity: Plastic film used to keep components and accessories securely together.
Vibration Resistance: Custom-cut foam plates and blocks to immobilize the machine and prevent movement.
Customization Available: We accommodate specific packaging requirements per customer request.
Quality Commitment:
We prioritize quality above all, ensuring our products consistently meet and exceed customer expectations.
Sales & Online Support:
Superior, reliable product quality
Fast and timely delivery
Standard export packaging or customized options based on your needs
After-Sales Support:
Dedicated project assistance
Repair and maintenance services during the warranty period
Installation and operational training for your staff
Free or heavily discounted spare and wear parts
Open feedback channel: we value your input and provide continuous support
1. Are you a manufacturer or a trading company?
We are a professional manufacturer based in Shenzhen, China, with years of expertise in producing frequency inverters and portable water-cooling induction heating equipment.
2. What is the delivery time for samples and bulk orders?
Samples and in-stock items are typically delivered within 5 days. For custom or larger orders, delivery takes between 7–30 days depending on order specifics.
3. What is the warranty period?
All products come with a 12-month warranty.
4. Do you offer quantity discounts?
Yes, we provide reduced pricing for larger orders.
5. Can machines be customized?
Absolutely. We offer customization based on your detailed requirements. Please share your needs, and we’ll recommend the most suitable model.
